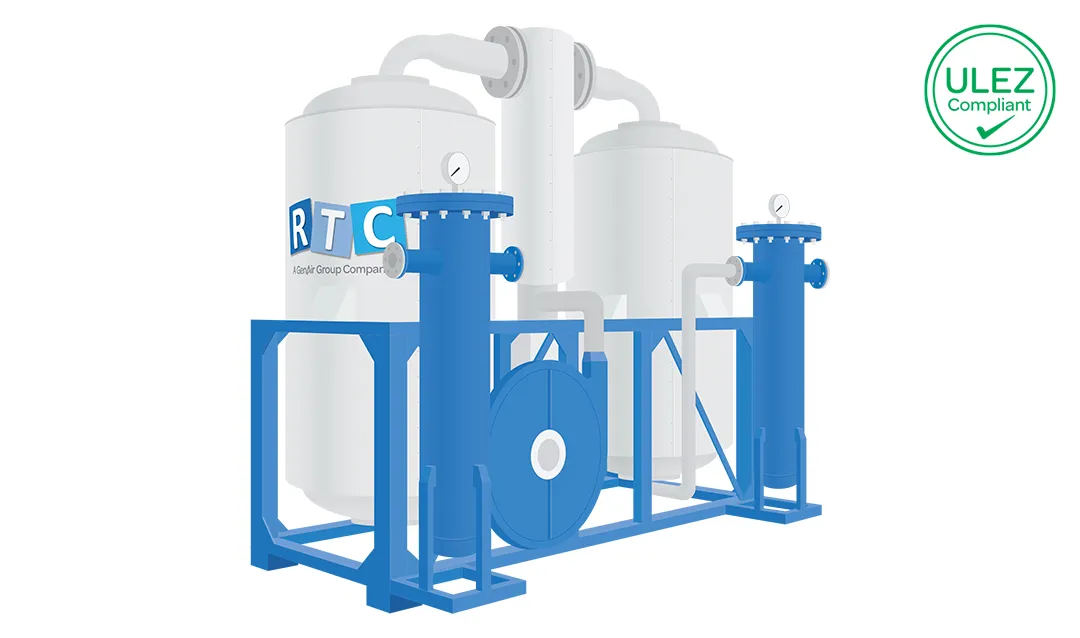

RTC Rental JO27 58m3/min Regenerating Desiccant Dryer Hire
RTC JO27 regenerating desiccant dryer delivering 58m3/min at 16 Bar(g), with integrated control system.
Technical Data
| MAX. CAPACITY | 58m3/min (3480m3/h – 2047cfm) |
|---|---|
| MAX. WORKING PRESSURE | 16 Bar(g) – (220 PSI (g)) |
| MIN/MAX. INLET TEMP. | +5 to +40°C |
| PRESSURE DEW POINT | -20 to -40°C |
| DISCHARGE CONNECTION | DN100-PN16 |
| VOLTAGE | 400 V, 50 Hz |
| ABSORBED POWER | 56 kW |
| ABSORBED CURRENT | 125 A |
| GROSS WEIGHT | 4500 kg |
| DIMENSIONS | 3100 × 2250 × 2050mm |
| SOUND PRESSURE | <70dB(A) (EN ISO 2151:2004) |
- External-heat regeneration system
- No loss of compressed air for regeneration or cooling
- Pressure drop lower than 0.1 bar at full capacity
- Sophisticated PLC control and communication unit
- Parallel drying phase for steady dewpoint performance
