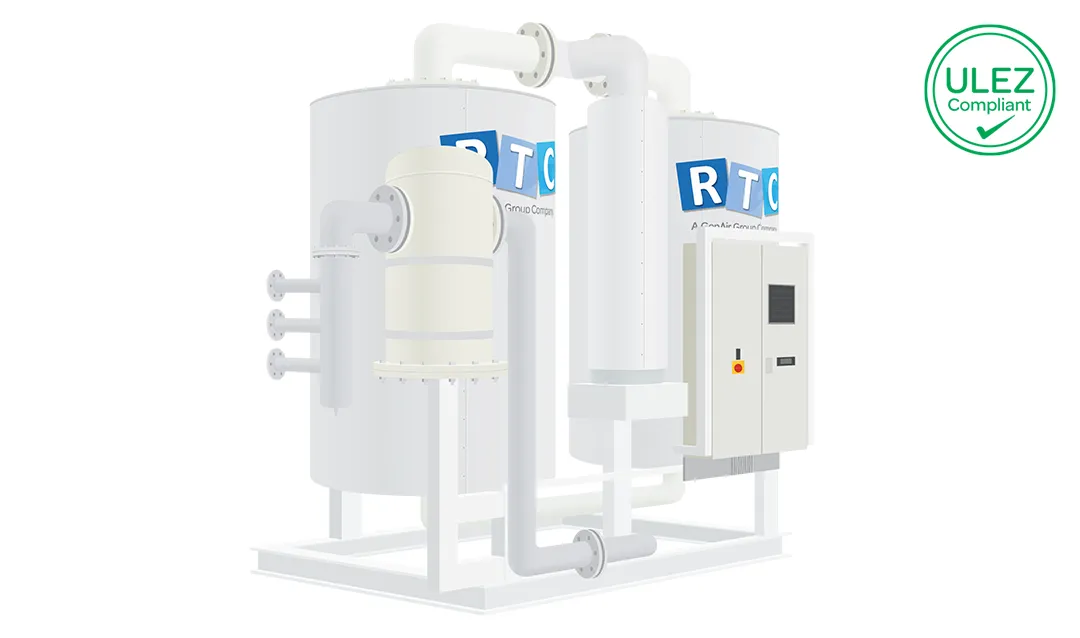

RTC Rental DB33S 186m3/min Regenerant Desiccant Dryer Hire
RTC DB33S regenerating desiccant dryer delivering 6600cfm (186m3/min) at 224psi (16 Bar(g)), with integrated control system.
Technical Data
| MAX. CAPACITY | 186m3/min (10885m3/h – 6600cfm) |
|---|---|
| MAX. WORKING PRESSURE | 16 Bar(g) – (224 PSI (g)) |
| MIN/MAX. INLET TEMP. | +5 to +40°C |
| PRESSURE DEW POINT | -20 to -40°C |
| AIR CONNECTIONS | DN200-PN16 * |
| VOLTAGE | 400 V, 50 Hz |
| ABSORBED POWER | 132 kW |
| FAN POWER | 11 kW |
| GROSS WEIGHT | 11,500 kg |
| DIMENSIONS | 5100 × 2500 × 3400mm |
| SOUND PRESSURE | 72dB(A) (EN ISO 2151:2004) |
| DURING BLOW-OFF | 85dB(A) |
- External heat regeneration system
- No loss of compressed air for regeneration or cooling
- Pressure drop lower than 0.1 bar at full capacity
- Sophisticated PLC control and communication unit
- Parallel drying phase for steady dewpoint performance
