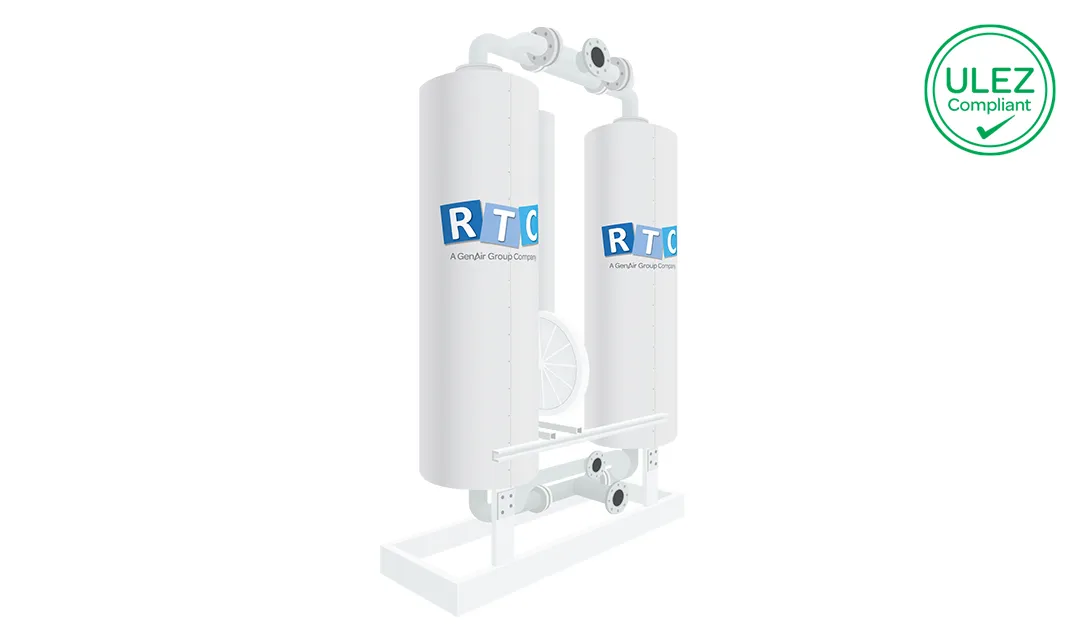

RTC Rental DB 24 28m3/min Regenerant Desiccant Dryer Hire
RTC DB24 regenerating desiccant dryer delivering 990cfm (28m3/min) at 155psi (11 Bar(g) with integrated control system.
Technical Data
| MAX. CAPACITY | 28m3/min (1675m3/h – 990cfm) |
|---|---|
| MAX. WORKING PRESSURE | 11 Bar(g) – (155 PSI (g)) |
| MIN/MAX. INLET TEMP. | +5 to +40°C |
| PRESSURE DEW POINT | -20 to -40°C |
| DISCHARGE CONNECTION | DN80-PN16 |
| VOLTAGE | 400 V, 3 Ph, 50 Hz |
| ABSORBED POWER | 20 kW |
| GROSS WEIGHT | 2200 kg |
| DIMENSIONS | 2300 × 1750 × 2950mm |
| SOUND PRESSURE | 72dB(A) (EN ISO 2151:2004) |
| DURING BLOW-OFF | 80dB(A) |
- External-heat regeneration system
- No loss of compressed air for regeneration or cooling
- Pressure drop lower than 0.1 bar at full capacity
- Sophisticated PLC control and communication unit
- Parallel drying phase
