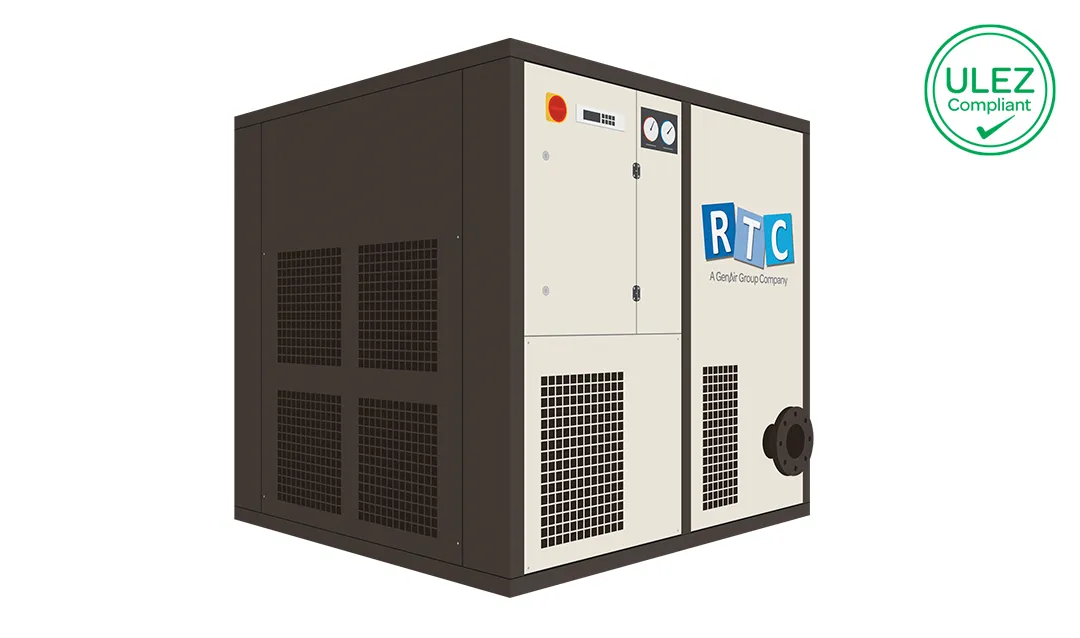

RTC Rental D4800 80m3/min Cycling Refrigerant Dryer Hire
RTC D4800 cycling direct operating refrigeration dryer delivering 2824cfm (80m3/min) at 155psi (11 Bar(g)), with integrated control system.
Technical Data
| MAX. CAPACITY | 80m3/min (4800m3/h – 2824cfm) |
|---|---|
| MAX. WORKING PRESSURE | 11 Bar(g) – (155 PSI (g)) |
| MIN/MAX. INLET TEMP. | +5 to +40°C |
| MIN/MAX. AMBIENT | +5 to +46°C |
| PRESSURE DEW POINT | +2 to +10°C |
| DISCHARGE CONNECTION | DN150-PN16 * |
| VOLTAGE | 400 V, 3 Ph, 50 Hz |
| ABSORBED POWER | 10.3 kW |
| ABSORBED CURRENT | 18.6 A |
| GROSS WEIGHT | 1400 kg |
| DIMENSIONS | 1500 × 1510 × 1570mm |
| SOUND PRESSURE | <70dB(A) (EN ISO 2151:2004) |
- Cycling direct operating refrigeration dryer
- Complete package with built-in controls and automatic drain system
- Electric driven, highly efficient hermetic compressor
