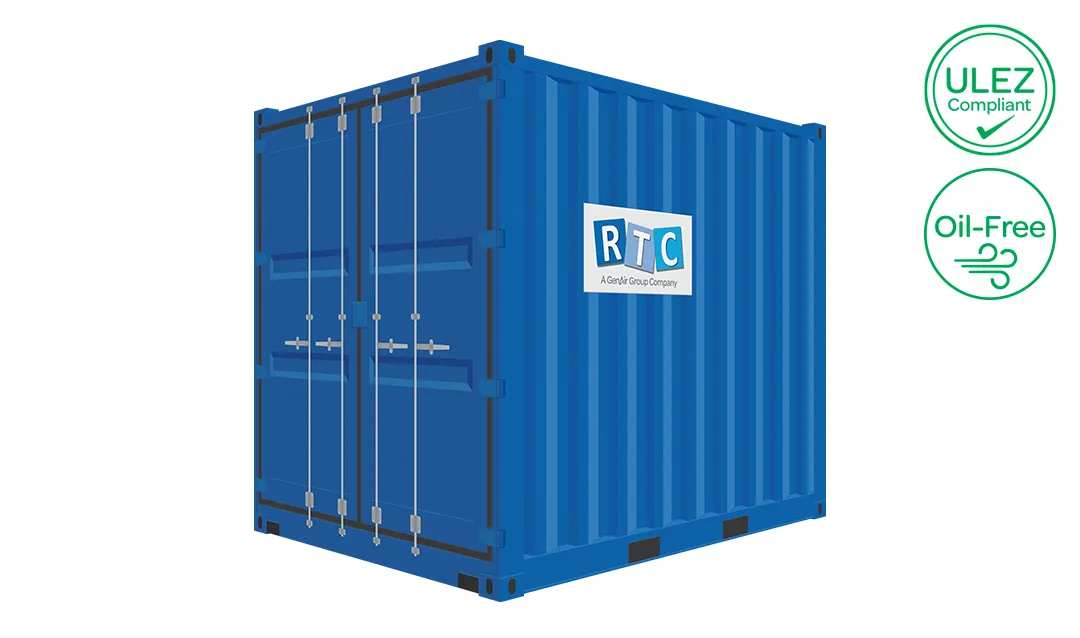

RTC Rental C47 50m³/min Electric 100% Oil Free Centrifugal Air Compressor Hire
RTC 2-stage 100% oil-free air compressor electric drive delivering 50m3/min (1765cfm) at 7.5barg (112psi) of class zero quality air.
- Five axis precision machined stainless steel impellers for maximum energy savings in all conditions
- Complete tested package with built-in lubrication and cooling systems
- Flange mounted motor for permanent alignment
- Complete control, protection and diagnostic system
- Integral water-cooled inter- and aftercooler with single point flanged connections for air and water
- Inlet air filter with and separate by-pass silencer
Technical Data
| MAX. CAPACITY | 50m3/min (3000m3/h – 1765cfm) |
|---|---|
| MAX. WORKING PRESSURE | 7.5 Bar(g) – (112psi (G)) |
| DISCHARGE AIR CONNECTION | DN100-PN16 |
| COOLING | Water cooling |
| COOLING PRESSURE | 2 Bar – max. 5 Bar |
| COOLING FLOW | 417 l/min |
| COOLING HEAT LOAD | 303961 Kcal/h |
| COOLING INLET TEMP. | 15°C (CTD 14°C) |
| COOLING CONNECTION | DN100-PN10 |
| ABSORBED POWER | 325kW |
| VOLTAGE | 400 V, 3 Ph, 50 Hz, 32 A |
| AUXILIARY POWER | 400 V, 3 Ph, 50 Hz |
| GROSS WEIGHT | 10,000kg |
| DIMENSIONS | 6100 × 2440 × 2590mm |
| SOUND PRESSURE | <80dB(A) (EN ISO 2151:2004) |
