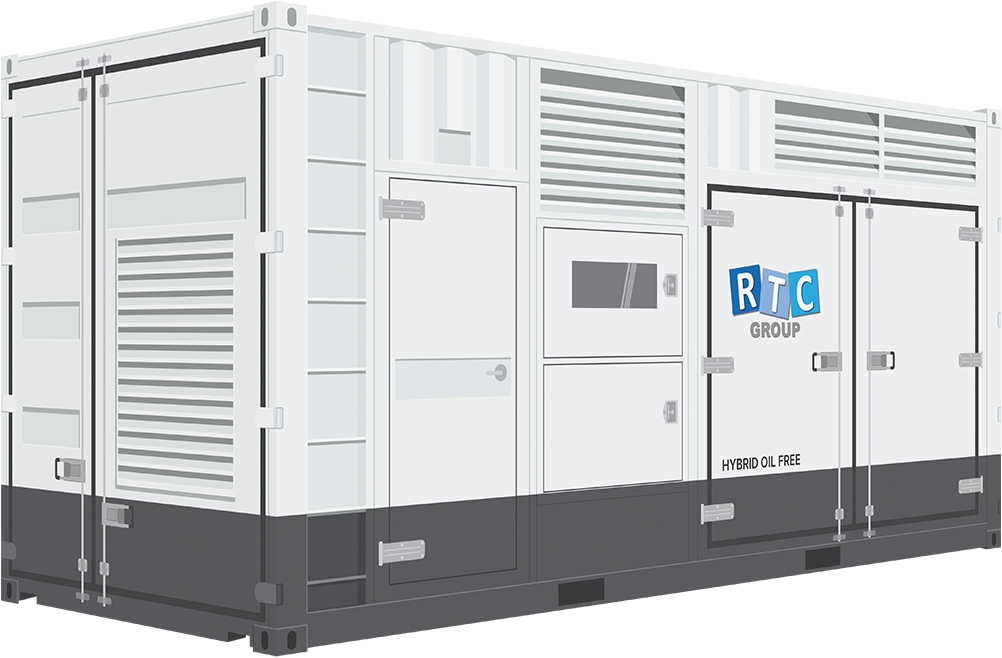

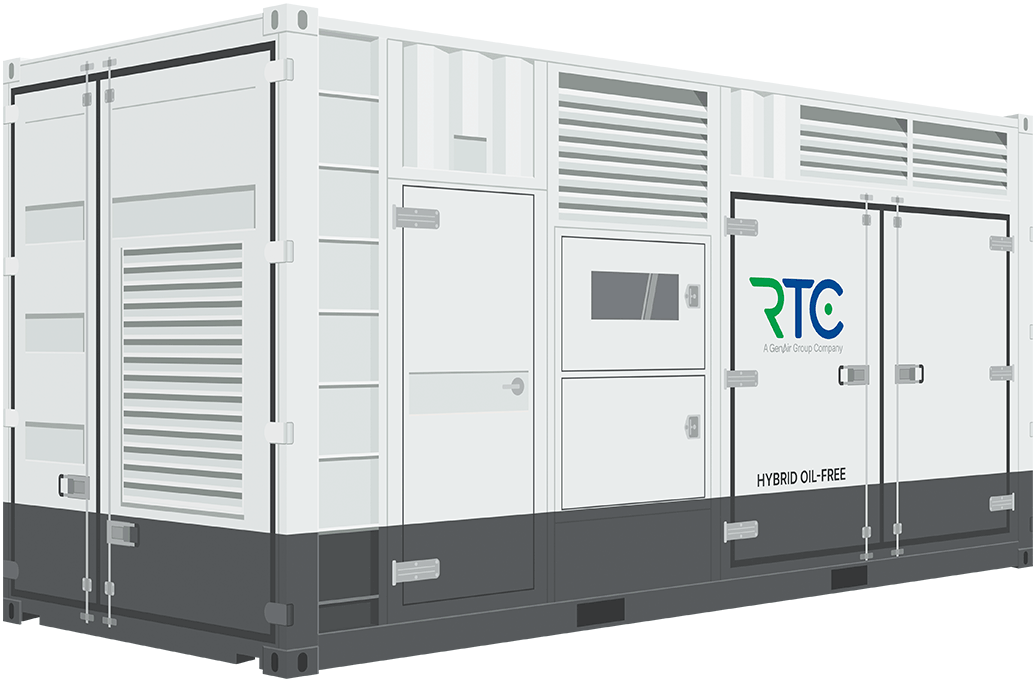

RTC Rental 23.5 m³/min Hybrid 100% Oil Free Air Compressor Hire
A unique 100% oil free air compressor with hybrid diesel/electric drive is a first in the industry. Delivering 832cfm (23.5m3/min) at 150psi (10.3barg) of class zero quality air combined. Developed and built in the UK, the new hybrid oil free compressors combine the versatility of a diesel-powered unit with the environmental benefits of electric drive in one complete package, delivering class leading efficiency and lower fuel costs, all with a reduced emissions output. Manufactured to full refinery specification, including spark arrestor and over speed protection, the units are housed in a fully weatherproof bespoke canopy and conform to standard 20” ISO dimensions for ease of transport.
- 100% Oil-free Class zero air quality
- Fully weatherproof for ambient conditions -25°C up to +50°C
- High efficiency hybrid power design
- Low emission zone compliant
- Ultra versatile mains electric / integrated diesel engine drive
- Full shift fuel tank (direct feed capability)
- Stackable units for reduced footprint
- Auto-start and remote monitoring capability
- Refinery equipment (inlet shut down valve & spark arrestor)
Technical Data
| MAX. WORKING PRESSURE | 10.3 barg (150psi) |
|---|---|
| MAX. FREE AIR DELIVERY | 23.5m3/min (832cfm) |
| ELECTRIC MOTOR POWER | 160kW |
| FUEL CONSUMPTION (FULL LOAD) | 38 litres/hr |
| NOISE LEVEL (LPA) @ 7M | 74dB(A) |
| LENGTH | 6060mm |
| WIDTH | 2440mm |
| HEIGHT | 2900mm |
| WEIGHT | 11250kg |
